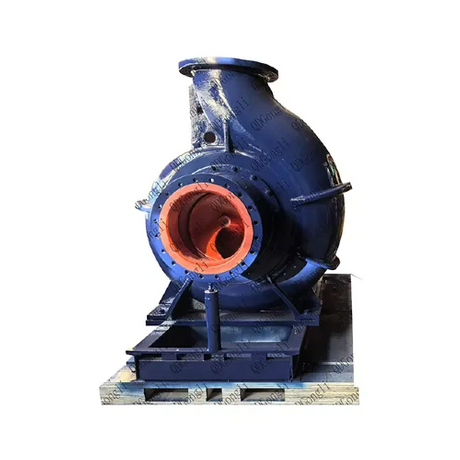

The LS201.043.0055 dry vertical spiral centrifugal pump is engineered to deliver exceptional reliability and fluid handling capability in demanding industrial and municipal environments. Inheriting the distinct mechanical advantages of a spiral centrifugal impeller, this equipment efficiently transports dense media containing large solid particles and long, stringy fibers without experiencing blockages. This optimized hydraulic model directly translates into significant reductions in long-term operating power consumption, ensuring that large-scale pump stations maintain excellent energy efficiency over decades of continuous use.
Unlike traditional submersible alternatives, the motor of this unit is completely exposed to the ambient air rather than submerged in the fluid. This dry configuration provides superior natural heat dissipation conditions, ensuring the motor remains cool even during continuous, heavy-duty operation. By keeping critical electrical components entirely out of the wastewater, it permanently eliminates the risk of motor burnout caused by liquid ingress or seal failure, drastically extending the equipment's operational lifespan and providing peace of mind for facility operators.
The intelligent vertical structure allows the foundation to occupy a remarkably small footprint, making it the perfect solution for pump pits or water pools where spatial constraints are a primary concern. When routine maintenance is required for the motor, upper bearing, or top mechanical seal, operators do not need to hoist the entire heavy-duty pump unit out of the deep pit. All essential servicing can be performed directly from the top level in a dry, safe environment. This accessibility significantly reduces the physical manpower, specialized lifting equipment, and facility downtime typically required for upkeep.
Constructed from highly wear-resistant, high-strength alloy materials, the pump casing and impeller are designed to withstand highly abrasive and corrosive fluids. The exterior features a precisely applied, multi-layer industrial anti-corrosion coating that provides a smooth yet incredibly tough tactile barrier against aggressive chemicals found in raw sewage. Internally, the assembly is equipped with heavy-duty bearings from globally recognized brands and high-precision mechanical seals, guaranteeing stable, low-friction rotation even under the most severe working conditions.
The dry vertical spiral centrifugal pump achieves an optimal balance between spatial efficiency, deep-pit applicability, and long-term mechanical dependability. By adjusting the length of the long drive axis, the system easily adapts to varying underwater depths without the efficiency drops typically experienced by standard submersible pumps under fluctuating head conditions. Although its long axis and shaft sealing system require specific routine checks, it remains one of the most reliable choices for medium to large-scale fluid lifting projects.
Municipal sewage lifting pump station: Serving as the primary main pump to handle heavy daily municipal waste loads, ensuring continuous flow without fiber entanglement.
Industrial wastewater tank: Reliable lifting and conveying of corrosive, deep-pit wastewater within chemical processing plants or heavy manufacturing facilities.
Rainwater discharge pump station: Providing rapid, high-volume fluid displacement during critical storm events and seasonal heavy rainfall to prevent facility flooding.
Sewage treatment plant: Efficiently managing inlet pump room operations and handling thick return sludge, maintaining the biological treatment balance.
Flood control and drainage: Powering large vertical pump stations where continuous, dependable water extraction is mandatory for regional safety.
To ensure straightforward integration into your existing infrastructure, the pump is designed with internationally standardized flange interfaces. The flexible long-axis customization allows the equipment to seamlessly align with your current deep pit architecture and pipe networks, often eliminating the need for costly and time-consuming structural modifications to your facility. When your project demands deep pit transportation and prioritizes a motor that is both highly accessible and exceptionally dependable, this configuration stands as the definitive mainstream solution for large pumping stations.
product name | Dry vertical spiral centrifugal pump |
Model (serial number) | LS201.043.0055 |
structure | Vertical and dry type |
Sealing method | Single end seal, double end seal or customized according to needs |
maximum flow（m^3/h） | 300-450 |
Maximum head(m) | 15 |
voltage(v) | 380 |
Frequency (HZ) | 50 |
Outlet diameter（mm） | 100-600（Can be equipped with adapters according to needs） |
Temperature of the conveying medium（℃） | 0-70 |
Cooling method | Water cooled or oil cooled jacket for dry use |
customized | Customizable according to needs |
after-sale service | online service |
Ensuring absolute reliability in critical municipal and industrial infrastructure requires uncompromising manufacturing standards. Every vertical spiral centrifugal pump undergoes a rigorous validation process before deployment to guarantee structural integrity and operational excellence.
Prior to leaving the manufacturing facility, each impeller is subjected to strict dynamic and static balance testing. This precision balancing reduces mechanical noise to a steady, reassuring hum during operation, minimizing wear on the bearings. This is followed by comprehensive hydrostatic pressure tests and full-machine bench performance evaluations to ensure a 100% standard delivery rate. Furthermore, the equipment fully complies with ISO quality management systems and CE industrial standards, meeting the stringent bidding prerequisites for large-scale municipal and industrial procurement projects globally.
To protect your infrastructure investment and minimize operational disruptions, we maintain a comprehensive inventory of original factory wear parts. In the event of scheduled maintenance or unexpected requirements, our expert technical support team provides rapid-response guidance, helping your facility crews resolve issues swiftly. This dedicated lifecycle support significantly reduces downtime risks and controls overall maintenance expenditures across the equipment's entire operational life.
