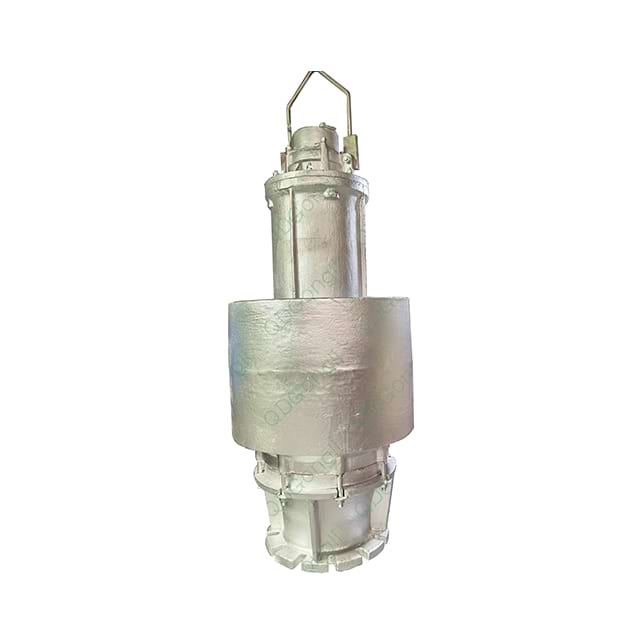

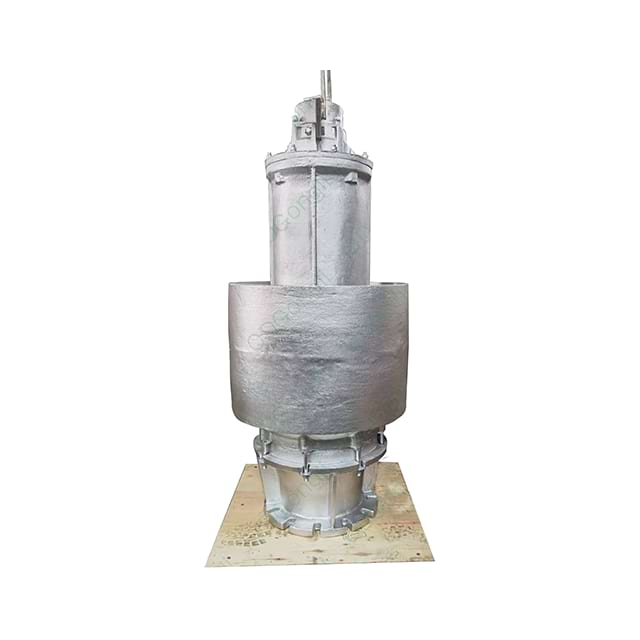

The vertical dry spiral centrifugal pump represents a highly reliable fluid management solution engineered for demanding transfer environments. Inheriting the proven fluid dynamics of the spiral centrifugal impeller, this equipment efficiently transports media laden with large solid particles and long fibrous materials without experiencing the blockages common in traditional designs. To ensure exceptional durability against highly concentrated sewage and aggressive industrial wastewater, the core fluid-handling components are cast from wear-resistant, high-strength alloys. A specialized, dense anti-corrosion coating is meticulously applied to the wetted parts, providing a smooth, impenetrable finish that actively repels corrosive elements and extends the structural integrity of the entire unit.
Unlike conventional submersible designs, the motor of this pump is completely exposed to the ambient air. This dry-zone placement provides superior natural heat dissipation conditions, entirely eliminating the risk of motor burnout caused by liquid ingress or seal failure in submerged environments. The system is equipped with top-tier international brand bearings and a highly dependable mechanical sealing system, which work in tandem to minimize mechanical friction, reduce operational vibration, and significantly extend the Mean Time Between Failures (MTBF).
The vertical architecture ensures the foundation occupies a minimal footprint, making it an ideal choice for pump pits, underground stations, or water tanks with severe space constraints. Maintenance teams can inspect the motor, upper bearing assembly, and top mechanical seal directly from the surface level. There is no need to deploy heavy lifting equipment to hoist the entire heavy-duty pump set out of a deep pit. This top-access design drastically reduces manual labor hours, simplifies routine checks, and minimizes operational downtime.
By adjusting the length of the long shaft, the system easily adapts to varying deep-pit depths without compromising fluid delivery performance. The optimized hydraulic model of the spiral centrifugal impeller, paired with a high-efficiency motor, maximizes pumping throughput while minimizing electrical consumption, thereby effectively lowering the Total Cost of Ownership (TCO). Before leaving the manufacturing facility, every single unit undergoes strict dynamic and static balance testing of the impeller, comprehensive water pressure trials, and full-machine performance evaluations to guarantee absolute operational certainty under extreme loads.
Municipal sewage lifting pump station: Serving as the primary main pump in critical infrastructure, this unit handles continuous, heavy-duty municipal waste transfer. Its strict compliance with ISO and CE international certification standards ensures it meets the exact technical requirements of large-scale engineering bids and municipal projects.
Industrial wastewater tank: Specifically designed for lifting and transporting highly corrosive or abrasive wastewater from deep factory pits. The heavy-duty alloy construction and specialized anti-corrosion coatings resist chemical degradation, maintaining fluid transfer efficiency in harsh manufacturing environments.
Rainwater drainage pumping station: Deployed in situations requiring rapid, large-flow drainage to prevent urban or facility flooding. The spiral impeller design ensures that debris-laden stormwater passes through quickly without causing internal blockages.
Wastewater treatment plant: Essential for influent pump rooms and return sludge processes, where consistent flow rates and the ability to handle viscous, solid-rich sludge are non-negotiable for the plant's biological treatment phases.
Flood control and drainage: Integrated into large vertical pumping stations designed for environmental protection and emergency water level management, providing dependable operation when failure is simply not an option.
When your project demands deep pit transportation—such as complex sewage lift stations—and requires a motor configuration that is easier to maintain and more dependable than standard submersible alternatives, this pump serves as the definitive choice for large pumping stations. Furthermore, we provide extensive flexible customization options, including various flange standards, precise long-shaft depth adjustments, and specific motor configurations, allowing for direct adaptation into both newly constructed pumping facilities and the retrofitting of aging deep-pit infrastructure.
Product Name | Dry vertical spiral centrifugal pump |
Model (Serial Number) | LS201.043.0055 |
Structure | Vertical and dry type |
Sealing Method | Single end seal, double end seal or customized according to needs |
Maximum Flow（m^3/h） | 300-450 |
Maximum Head(m) | 15 |
Voltage(v) | 380 |
Frequency (HZ) | 50 |
Outlet Diameter（mm） | 100-600（Can be equipped with adapters according to needs） |
Temperature Of The Conveying Medium（℃） | 0-70 |
Cooling Method | Water cooled or oil cooled jacket for dry use |
Customized | Customizable according to needs |
After-Sale Service | Online service |
To ensure your fluid management systems operate with maximum uptime, we provide an end-to-end technical support framework that addresses every phase of your project. Our engineering team delivers professional selection guidance tailored to your specific flow rate, head requirements, and spatial constraints, ensuring the exact configuration for your site. During deployment, we supply detailed on-site installation and commissioning recommendations to guarantee the equipment is integrated correctly and safely.
Beyond initial installation, our commitment extends throughout the equipment's operational life. We maintain a responsive supply chain for original factory spare parts, including mechanical seals, bearings, and specialized impellers, enabling rapid replacements when necessary. This comprehensive lifecycle service is designed to eliminate downtime anxiety, ensuring your pumping stations remain operational, highly efficient, and fully supported year after year.
