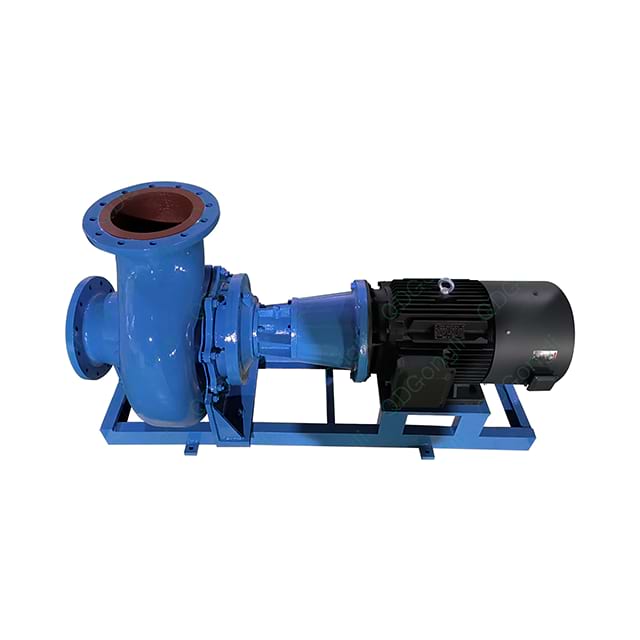

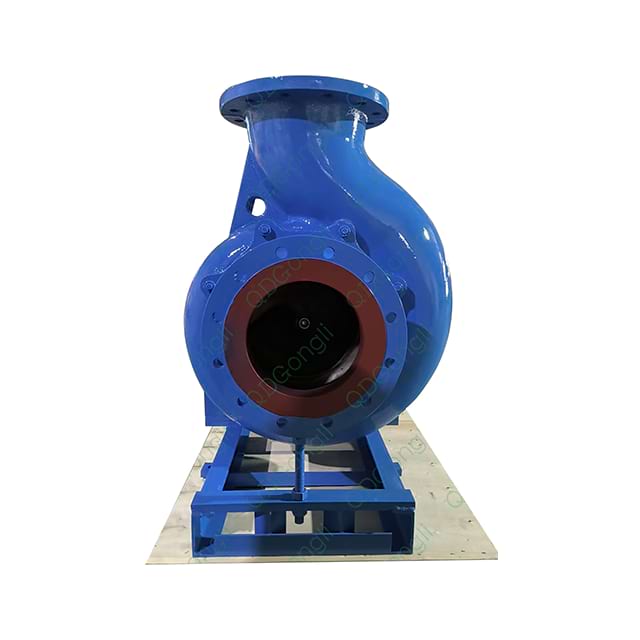

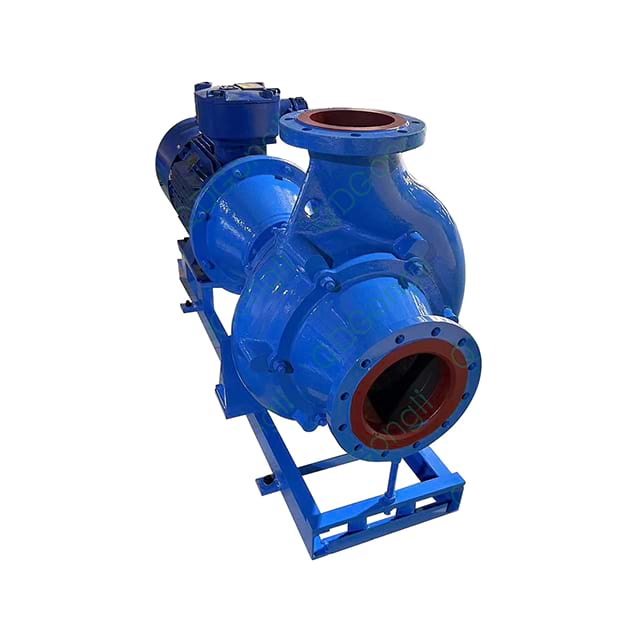

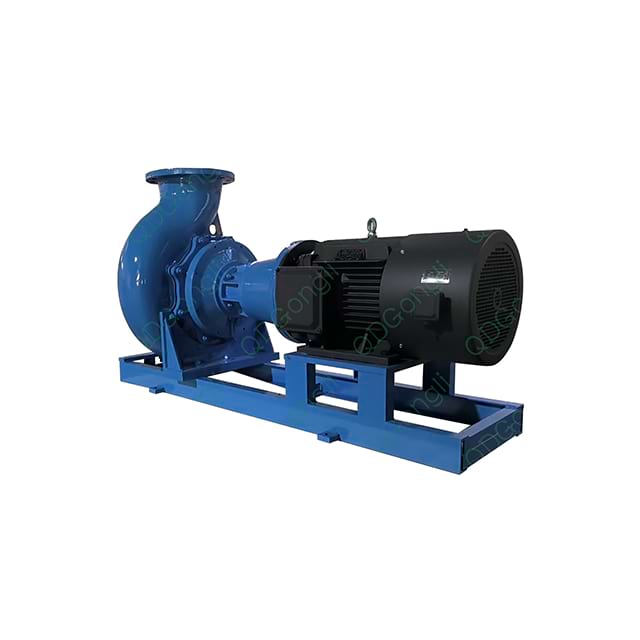

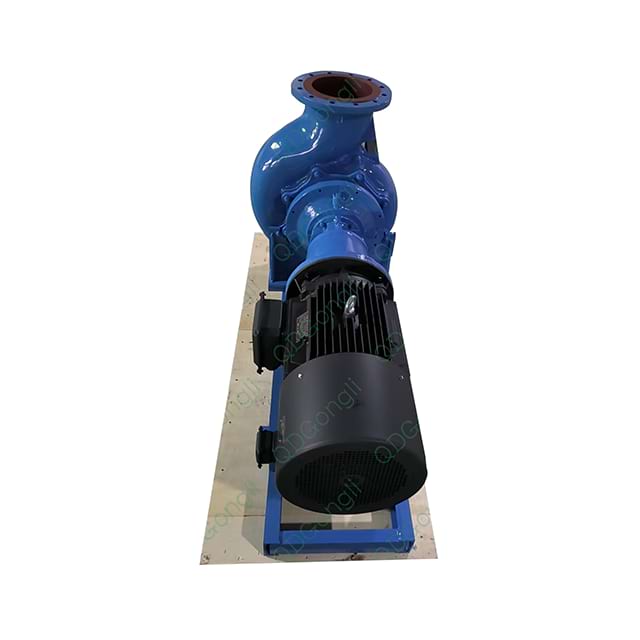

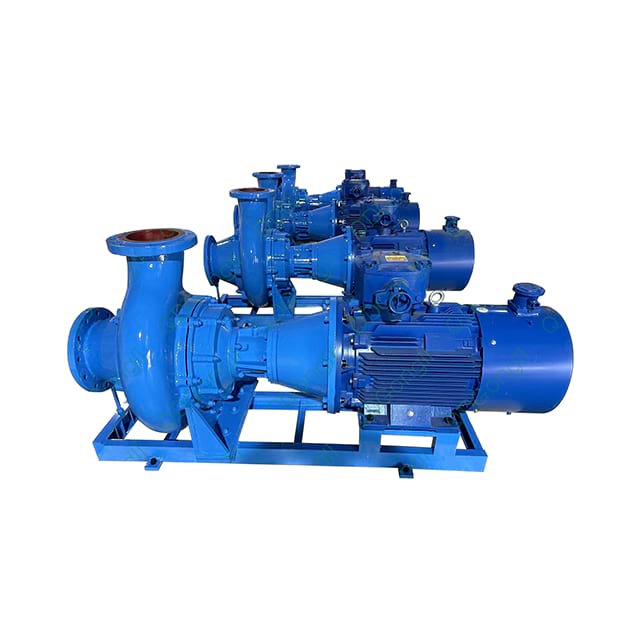

The GL623.046.0022 horizontal coupling screw centrifugal pump embodies a pragmatic engineering philosophy focused strictly on maximizing equipment availability while minimizing the total lifecycle cost (TCO) for demanding industrial facilities. At its core, the unique spiral centrifugal impeller design achieves an optimal balance between high-efficiency fluid dynamics and completely non-clogging performance. When observing the pump in operation, the gentle yet powerful suction mechanism handles complex, solid-laden fluids without causing destructive turbulence or internal blockages. The heavy-duty metallic casing provides a reassuringly solid tactile feel, coated with an industrial-grade finish designed to resist the corrosive effects of harsh environmental exposure.
Powered by a highly energy-efficient 2.2KW motor operating at a steady 1440r/min, this dry-installation unit delivers consistent, reliable rotational force. The integration of a precision-machined plum blossom coupling serves as a critical mechanical buffer in the transmission system. This specific coupling effectively absorbs operational vibrations and compensates for minor alignment deviations, thereby significantly extending the lifespan of both the motor and pump bearings. While designed primarily as a dry pump with an overall waterproof rating of IP55, its thermal management is expertly handled through a dedicated motor heat dissipation sleeve, ensuring the unit remains at an optimal operating temperature even during continuous, heavy-duty cycles.
To address the diverse chemical compositions and abrasive natures of industrial fluids, this pump architecture offers multiple wear-resistant and anti-corrosion material configurations. Whether a facility is processing highly concentrated municipal wastewater or abrasive chemical slurries, the selected metallurgy ensures structural integrity over prolonged operational cycles. Furthermore, the system supports extensive physical customization. Operators can specify varied mechanical sealing methods—ranging from single end seals to double end seals—and adaptable flange interfaces. This flexibility allows for precise, secure integration into existing pipeline networks and complex facility layouts, reducing installation downtime and modification expenses.
Leveraging its distinct structural advantages and gentle fluid handling capabilities, the coupling spiral centrifugal pump serves as a dependable transportation solution across sectors demanding the careful management of challenging, viscous, or solid-heavy media:
Wastewater treatment: Excels in moving unfiltered raw wastewater, thick sludge, activated sludge, and settling sand. The non-clogging spiral impeller ensures continuous, uninterrupted operation in municipal facilities and heavy industrial effluent management plants, significantly reducing the need for manual clean-outs.
Paper industry: Highly capable of conveying dense media containing long, fibrous materials such as raw wood pulp and recycled waste paper pulp. The internal geometry prevents these long fibers from tangling around the rotating assembly, preventing motor stalls and maintaining steady production lines.
Fisheries and aquatic processing: Functions exceptionally well as a specialized "fish pump" for transporting live fish. The gentle, low-shear internal fluid dynamics transport delicate aquatic products with minimal physical stress, preserving the integrity of the fish body and preventing scale damage.
Food industry: Ideal for transporting fragile, bruise-prone agricultural products. Whole fruits (such as apples, tomatoes), vegetables, and potatoes pass through the spacious pump volute completely intact, preserving product yield and visual appeal for downstream packaging.
Construction industry: Reliably clears construction site groundwater and trench runoff containing abrasive impurities, including coarse sand, gravel, and suspended mineral solids. The rugged interior withstands the constant scouring action of these particulates.
Other industries: Highly adaptable for chemical processing, mining tailings management, river dredging, and other occasions where solid particles and aggressive fluids must be transported efficiently.
Product Name | Coupling screw centrifugal pump |
Model (Serial Number) | GL623.046.0022 |
Structure | Horizontal, dry, coupling connection |
Sealing Method | Single end seal, double end seal or customized according to needs |
Maximum Flow（m^3/h） | 50-70 |
Maximum Head(m) | 3-8 |
Voltage(v) | 380 |
Frequency (HZ) | 50 |
Outlet Diameter（mm） | 100-600（Can be equipped with adapters according to needs） |
Temperature Of The Conveying Medium（℃） | 0-70 |
Cooling Method | Dry pump, motor heat dissipation sleeve |
Customized | Customizable according to needs |
After-Sale Service | Online service |
Procurement of the GL623.046.0022 model goes far beyond acquiring a standard piece of machinery; it represents a strategic investment in long-term operational stability and process reliability. Every single unit undergoes a rigorous, documented factory testing protocol before it is cleared for dispatch to your facility.
Our dedicated quality control engineers conduct precise dynamic and static balancing tests on the impeller and coupling assembly to guarantee smooth, vibration-free performance under load. Comprehensive hydraulic testing verifies that the flow rate and head parameters strictly align with the published specifications. The equipment is manufactured in strict compliance with major international industrial standards, meeting the stringent entry requirements of municipal infrastructure, food processing, and chemical manufacturing sectors. To secure your investment over its entire operational life, we maintain a highly responsive online service network and a comprehensive spare parts inventory. This ensures that essential maintenance components are readily available to keep your fluid management systems running smoothly around the clock, minimizing unexpected downtime.
