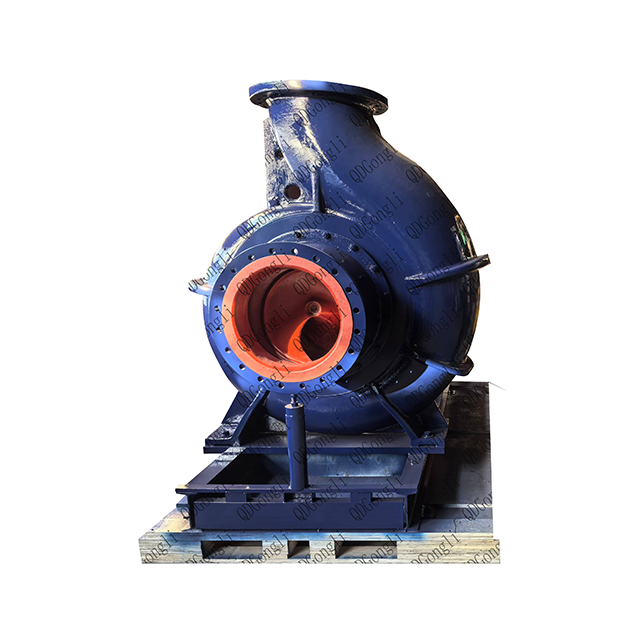

The LSB01.202.2200 High Flux Screw Centrifugal Pump is engineered specifically to tackle the most demanding fluid transportation challenges encountered in complex industrial environments. As a prominent, large-scale unit within the horizontal spiral centrifugal pump category, its super-large structural design establishes an overwhelming flow advantage that standard centrifugal models simply cannot match. This configuration is meticulously crafted to handle highly complex conveying media, allowing fragile materials to be transported intact over extended distances without degradation or shear damage.
At the core of this heavy-duty equipment is the integrated design of the impeller and drive shaft. This unified architecture significantly reduces mechanical fatigue, minimizes shaft deflection, and ensures extended service life under continuous, high-stress operation. The primary flow-passage components are cast from high-strength, wear-resistant, and anti-corrosive metals. When inspecting the thick metallic housing, maintenance teams will immediately recognize the physical density designed to withstand severe abrasion from solid-laden fluids. This heavy construction translates directly into exceptional operational stability, minimizing the risk of unexpected breakdowns in harsh, corrosive environments.
Safety and thermal equilibrium are paramount for continuous heavy-duty pumping. The motor is horizontally arranged and features an exclusive oil cooling design, which emits a steady, low-vibration hum rather than the loud mechanical grinding typical of stressed pumps. Coupled with a specialized inline double-end mechanical sealing structure, this thermal management system guarantees absolute fluid isolation. Even in extreme scenarios involving complete water immersion during use, the equipment transitions smoothly without compromising internal electronics or mechanics. This dry and wet dual-use capability provides facility managers with unparalleled installation flexibility across varying site conditions.
Horizontal spiral centrifugal pumps act as the specialized forces for difficult transportation problems. While they may trade a fraction of absolute hydraulic efficiency for extreme reliability, their passability is unmatched. The unique spiral centrifugal impeller creates a gentle yet powerful vortex, pulling viscous, solid-rich, or easily damaged media through the super large channel. This continuous flow prevents blockages and eliminates the foul odors associated with stagnant, clogged organic waste, making it an indispensable asset in environmental protection facilities, municipal waste management networks, and heavy industrial mining fields.
The following specifications detail the precise engineering metrics of the LSB01.202.2200 model. Each parameter reflects our commitment to delivering consistent, heavy-duty performance for complex fluid dynamics.
Product Name | High head screw centrifugal pump |
Model (Serial Number) | LSB01.202.2200 |
Structure | Horizontal, large, wet type |
Sealing Method | Double mechanical seal |
Maximum Flow（m^3/h） | 4000-8000 |
Maximum Head(m) | 15-40 |
Voltage(v) | 380 |
Frequency (HZ) | 50 |
Outlet Diameter（mm） | 300-800（Can be equipped with adapters according to needs） |
Temperature Of The Conveying Medium（℃） | 0-70 |
Cooling Method | Horizontal, horizontal installation, wet and dry dual-use |
Customized | High flow rate, high head, large channel |
After-Sale Service | Online service |
Beyond the standard specifications listed above, this series offers extensive system adaptability. The flexible outlet diameter, ranging from 300mm to 800mm, can be equipped with custom adapters according to specific site requirements. For projects demanding specialized configurations, we provide deep engineering customization to accommodate exceptionally high flow rates, elevated heads, and unique large-channel demands.
Delivering a fluid transport solution of this magnitude requires uncompromising attention to detail during both manufacturing and final inspection. Every phase of production is geared toward ensuring that the equipment performs reliably under the most punishing field conditions.
Before leaving the manufacturing facility, each pump undergoes a comprehensive battery of tests based on strict industrial pump and valve standards. We simulate extreme load conditions to verify performance metrics across multiple dimensions:
Hydraulic Performance Mapping: Verifying that maximum flow rates (4000-8000 m³/h) and head capacities (15-40m) meet exact specifications.
Sealing Integrity Checks: Subjecting the double mechanical seals to high-pressure environments to guarantee zero leakage.
Vibration and Acoustic Analysis: Ensuring the horizontal motor and oil cooling system operate within strict noise and vibration tolerances.
Dual-Use Verification: Testing the transition between dry installation and wet immersion to confirm operational safety.
The LSB01.202.2200 is specifically designed for heavy-load conditions where conventional pumps experience frequent failures. It provides mature, proven solutions for critical transfer nodes in environmental water treatment plants, where it moves thick, heavy sludge effortlessly. In municipal sewage networks, the large channel handles unpredictable waste streams without clogging. For industrial and mining operations, the wear-resistant construction easily transports abrasive slurries, protecting the broader processing infrastructure from unexpected downtime and maintaining continuous production cycles.
Long-term operational costs are a primary concern for large-scale fluid management systems. The optimized mechanical structure of this horizontal pump inherently lowers the barrier for daily inspections and routine maintenance. The accessible horizontal layout means technicians can reach critical components, such as the mechanical seals and cooling chambers, without dismantling entire piping networks. Supported by our dedicated online service and a reliable supply of replacement parts, facility managers can effectively reduce the total lifecycle operating costs while maintaining peak operational readiness.
