Compared with traditional submersible pumps, this product adopts an oil cooling design, which solves the problem of not being able to completely submerge the water pump when transporting the medium to the end.

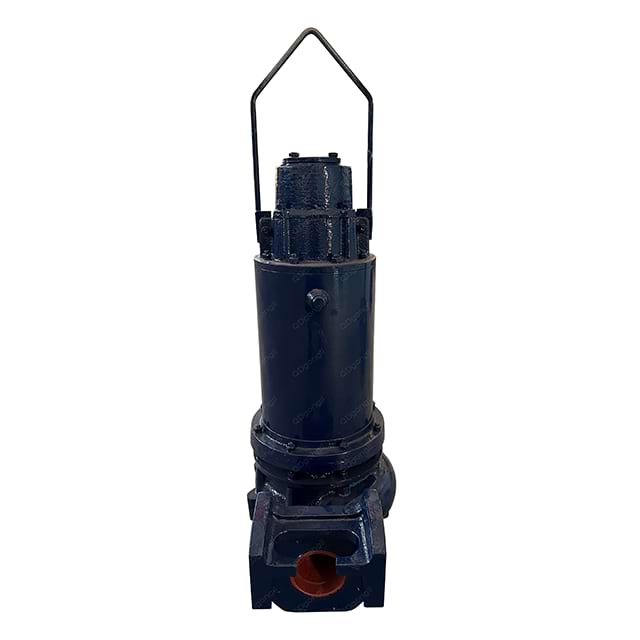

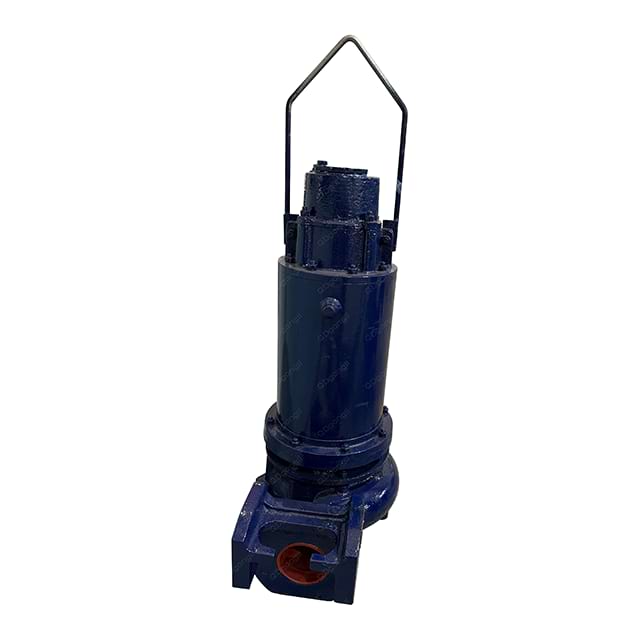

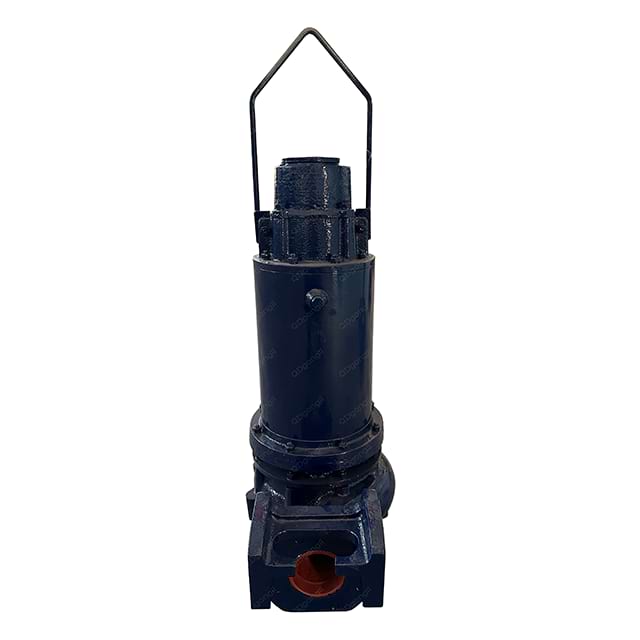

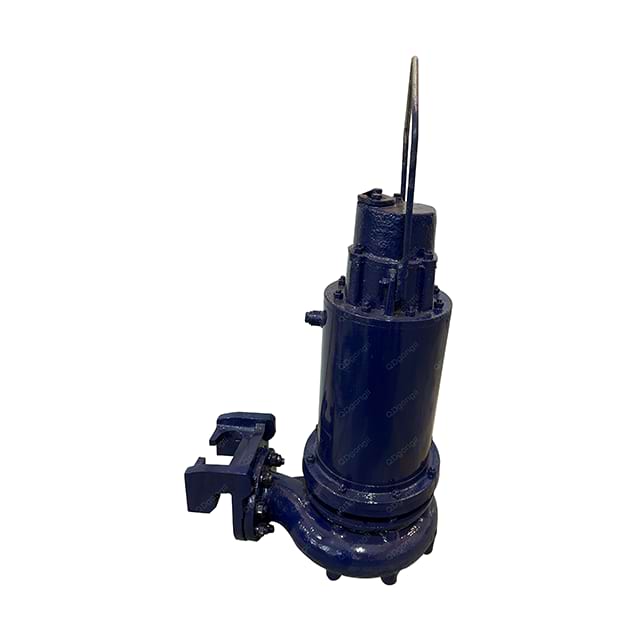

The LS201.032.0048 spiral centrifugal pump does not require the entire machine to be immersed in water. When on-site conditions do not permit, it can be temporarily used as a dry pump. As a relatively small spiral centrifugal pump, although the motor is only 4.8KW, it still has excellent head and large flow rate. The motor and pump body are designed to be integrated and work directly in the liquid. No need to build complex ground pump rooms and long shaft transmission systems, compact structure.
Application
Municipal water affairs: sewage treatment plant inlet lifting, rainwater pumping station, municipal pipeline intermediate lifting pumping station.
Industrial sector: Factory wastewater discharge, circulating water system, process drainage in industries such as papermaking, food, and pharmaceuticals.
Architecture and real estate: basement drainage of high-rise buildings, drainage of fire elevator sumps, and rainwater harvesting in residential areas.
Infrastructure: Drainage systems for tunnels, subways, and underpasses.
Agriculture and Mining: Irrigation of farmland, drainage of mines, dredging of rivers.
Technical Parameter
product name | Submersible screw centrifugal pump |
Model (serial number) | LS201.032.0048 |
structure | Vertical and submersible |
Sealing method | double mechanical seal |
maximum flow（m^3/h） | 42.12 |
Maximum head(m) | 20 |
voltage(v) | 380 |
Frequency (HZ) | 50 |
Outlet diameter（mm） | 50-80 |
Temperature of the conveying medium（℃） | 0-60 |
Cooling method | Equipped with oil cooling jacket and submersible pump |
customized | Export guide shoes, oil cooling sleeve |
after-sale service | online service |
