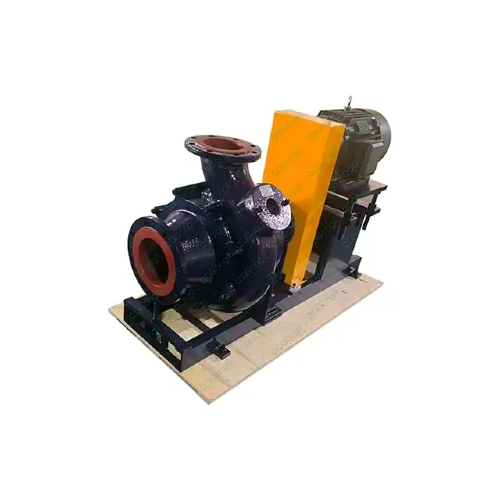

In industrial applications, the bearing bracket screw centrifugal pump is a critical piece of equipment used for high-flow, low-head pumping solutions. These pumps are designed to move large volumes of fluid with relatively low pressure, making them suitable for industries such as water treatment, irrigation, and flood control.
The connection between the bearing housing and the motor is crucial in ensuring the efficiency, longevity, and smooth operation of the pump. A proper connection ensures that the pump runs smoothly, with minimal vibration and wear on components. In this article, we will explore the different methods of connecting the bearing housing to the motor, each with its own set of advantages and challenges. By understanding these methods, you can select the best option for your specific application.
The bearing housing in a screw centrifugal pump is the component that houses the bearings, which support the shaft of the pump and motor. The bearing housing is a critical part of the pump's overall design, as it ensures the shaft remains aligned and stable during operation. It also helps to distribute the forces generated by the pump’s rotation evenly across the pump components, preventing excessive wear and maintaining the pump's performance over time.
There are several types of bearings used in bearing housings, depending on the pump’s design and application. Some common bearings used include:
Ball Bearings: These are widely used in centrifugal pumps due to their ability to handle both radial and axial loads. They are typically used in pumps with moderate to low power requirements.
Roller Bearings: These are used for applications where higher load-bearing capacity is required. They are commonly found in larger pumps or high-pressure systems.
Spherical Bearings: These bearings are used when there is a possibility of misalignment between the pump shaft and motor.
The choice of bearing affects the pump's performance, including its load capacity, efficiency, and maintenance requirements.
The connection between the bearing housing and motor in a screw centrifugal pump is fundamental to the overall performance and stability of the pump. There are several methods to achieve this connection, each with specific benefits and drawbacks. Below, we will discuss the most common connection methods used in screw centrifugal pumps.
A direct shaft connection is one of the simplest and most common methods for connecting the motor and bearing housing. In this setup, the pump shaft is directly coupled to the motor shaft without any additional coupling or intermediary parts.
Advantages | Details |
Efficiency | Direct connections provide a more efficient transfer of energy between the motor and the pump. |
Simplicity | This connection method has fewer components, making the system simpler and reducing the risk of mechanical failure. |
Cost-effective | Direct connections are less expensive to install compared to other methods. |
Disadvantages | Details |
Misalignment Issues | Any misalignment between the motor and bearing housing can cause significant wear on both the motor and bearing housing. |
No Flexibility | Direct connections offer little flexibility for compensating misalignment or shaft displacement over time. |
Flexible shaft couplings are designed to connect the motor and bearing housing while accommodating slight misalignments between the two. This coupling type is made from flexible materials that allow the shafts to move slightly relative to each other without damaging the pump components.
Advantages | Details |
Misalignment Tolerance | Flexible couplings can absorb axial, radial, and angular misalignments, making them ideal for systems that experience slight shifts in alignment. |
Vibration Damping | These couplings help dampen vibrations, which can protect the pump components from excessive wear. |
Improved Performance | By allowing slight misalignments, flexible couplings help maintain optimal performance. |
Disadvantages | Details |
Maintenance Needs | Flexible couplings require regular inspection and maintenance to ensure they remain in good working condition. |
Energy Loss | Flexible couplings may introduce slight energy losses compared to direct connections. |
A flanged connection involves connecting the bearing housing and motor via flanges. The flanges are bolted together to provide a secure and rigid connection. This method is commonly used in larger pumps or pumps designed to handle higher loads.
Advantages | Details |
Strength and Stability | Flanged connections provide excellent stability, making them ideal for high-load applications. |
Ease of Maintenance | Flanged connections are easier to maintain, as they can be disassembled and reassembled for repairs without requiring the pump to be taken offline for an extended period. |
Leak Prevention | Properly sealed flanged connections can prevent leaks, making them suitable for handling high-pressure fluids. |
Disadvantages | Details |
Complexity | Flanged connections require precise alignment and can be more complicated to install. |
Cost | Flanged connections are more expensive to install compared to simpler methods like direct shaft connections or flexible couplings. |
An elastic sleeve coupling is a type of coupling that absorbs shock and vibration by using an elastic material to connect the bearing housing and motor. This coupling type is designed to provide a cushion effect, reducing the impact of operational stress on the pump system.
Advantages | Details |
Vibration Dampening | Elastic sleeve couplings are excellent at reducing vibrations, which is especially important in high-speed applications. |
Misalignment Compensation | These couplings can accommodate small misalignments between the motor and bearing housing. |
Extended Component Life | By reducing stress on the pump components, elastic sleeve couplings help extend the lifespan of the motor and bearing housing. |
Disadvantages | Details |
Wear and Tear | Over time, the elastic material in the coupling may degrade, requiring periodic replacement. |
Lower Efficiency | Elastic sleeve couplings may result in slight energy losses compared to direct shaft connections. |
A magnetic coupling uses magnetic fields to transfer rotational energy from the motor to the bearing housing without the need for physical contact between the motor shaft and the pump shaft. This method eliminates the need for mechanical couplings.
Advantages | Details |
Eliminates Wear | Since there is no physical contact, magnetic couplings eliminate mechanical wear. |
Improved Efficiency | Magnetic couplings are highly efficient, with minimal energy loss during power transfer. |
Leak Prevention | Magnetic couplings are ideal for handling fluids that need to be kept in a sealed environment. |
Disadvantages | Details |
Cost | Magnetic couplings are more expensive to install compared to traditional methods. |
Complexity | Installation and alignment of magnetic couplings can be more complex, requiring specialized setup and expertise. |
When selecting the appropriate connection method for the bearing housing and motor, several factors should be considered:
The operating environment of the pump, including temperature, pressure, and fluid characteristics, will influence the choice of connection. For example, high-pressure applications may benefit from flanged connections, while applications with frequent misalignment may be better suited for flexible couplings.
Larger pumps with high power requirements typically require more robust connection methods, such as flanged connections or magnetic couplings, to handle the increased stress and load.
Some connection methods, such as direct shaft connections and flexible couplings, require more frequent maintenance, while others, like magnetic couplings, require less maintenance but come at a higher cost.
Cost is an important factor when selecting the connection method. Simpler methods, such as direct shaft connections or flexible couplings, may be more cost-effective but might come with trade-offs in performance or durability.
Properly connecting the motor and bearing housing ensures that the pump operates efficiently. This connection minimizes energy losses and ensures that power is effectively transmitted between the motor and pump.
Choosing the right connection method can extend the lifespan of both the motor and the bearing housing. By reducing mechanical wear, vibration, and misalignment, the components last longer, reducing the need for repairs or replacements.
A proper connection minimizes the risk of malfunction, leading to less frequent breakdowns and downtime. This helps increase the overall uptime and productivity of the pump system.
Misalignment between the motor and bearing housing can lead to premature wear and inefficiency. Regular checks and adjustments are necessary to ensure that the connection remains aligned.
Excessive vibration can occur if the motor and bearing housing are not properly connected, leading to inefficient pump operation and potential damage. Vibration dampening couplings or more robust connection methods can reduce this risk.
Improper connections can lead to bearing wear, causing the pump to lose efficiency or fail entirely. Routine inspections and maintenance can prevent this issue.
Leaks at flanged connections can result in fluid loss and system inefficiency. Proper sealing and regular inspection of the flanges are essential to prevent leaks.
Understanding the various connection methods between the bearing housing and motor in bearing bracket screw centrifugal pumps is essential for optimizing performance, minimizing maintenance, and extending the lifespan of pump components. Each method has its advantages and considerations, and the choice depends on factors such as operational conditions, pump size, and cost. Proper selection ensures the pump operates efficiently and reliably.
Consulting with experts, such as those at Qingdao Gongli Technology Co., Ltd., can help you select the best connection method tailored to your system’s specific needs, ensuring optimal performance and longevity.
Proper connection ensures alignment and efficient power transmission, which improves pump performance and reduces wear and tear on components.
Direct shaft connection and flexible couplings are commonly used, depending on the pump size and the operational environment.
Yes, misalignment can lead to vibration, premature wear, and decreased pump efficiency, making alignment a critical aspect of pump setup and maintenance.
Regular inspection is recommended, with maintenance intervals depending on the connection type and operational conditions. It is essential to check connections during routine maintenance schedules.
While magnetic couplings reduce mechanical wear, they still require maintenance for alignment and monitoring, although they generally need less frequent attention than other methods.
